1.0 Description

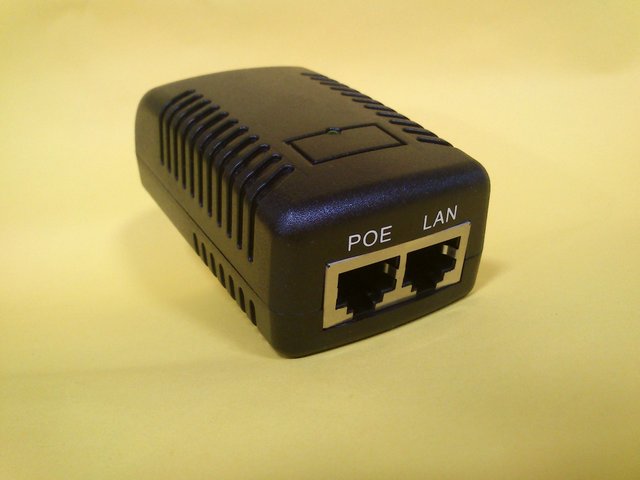

This power supply is special design for external computer accessories, it supply +24V, Total out put power 24W. The power supply has O.C.P and Short Protection.
2.0 INPUT CHARACTERISTICS
2.1 INPUT VOLTAGE RANGE:
90Vac to 264Vac (100Vac TO 240VaC)
2.2 INPUT FREQUENCY RANGE:
47Hz to 63Hz.
2.3 INPUT CURRENT:
1A Max @ 110Vac input
3.0 OUTPUT CHARACTERISTICS
3.1 DC OUTPUT
|
OUTPUT VOLTAGE
|
OUTPUT CURRENT
|
REGULATION TOLERANCE
|
|
|
MIN
|
MAX
|
MIN
|
MAX
|
|
+24V
|
0A
|
1A
|
-5%
|
+5%
|
*The actual result of testing is based on output terminal's testing report to fix.
3.2RIPPLE AND NOISE
240mV.
4.0 GENERAL SPECIFICATIONS
4.1 EFFICIENCY
At any line Maximum load (115Vac or 230Vac); power supply efficiency must be exceeding 80%min.
4.2 OPERATING TEMPERATURE
Operating: -20°C TO 40°C
4.3 STORAGE TEMPERATURE
Storage: -30°C TO 70°C
4.4 HUMIDITY
5% TO 90% RH
4.5 HOLD UP TIME
5mS.
4.6 PROTECTION
The O.V.P is based on +24V and the Short Protection or Over Current Protection was protected w/o output.
5.0 MECHANICAL SPECIFICATION
83.5(L)*47(W)*55(H)mm
